Shenghong fine powder grinding mill Load Controller, automatically measure the working current of the grinding mill and compare with the setting parameters, and then adjust the inverter output frequency to change the actual input variable (feeding amount), stabilize the load of the grinding mill; or directly adjust manually the load of the mill enables the fine powder grinding mill to be in an optimal load state, improve the operating efficiency of the motor, and avoid the occurrence of blockage. The controller is Automatic, low price and low maintenance.

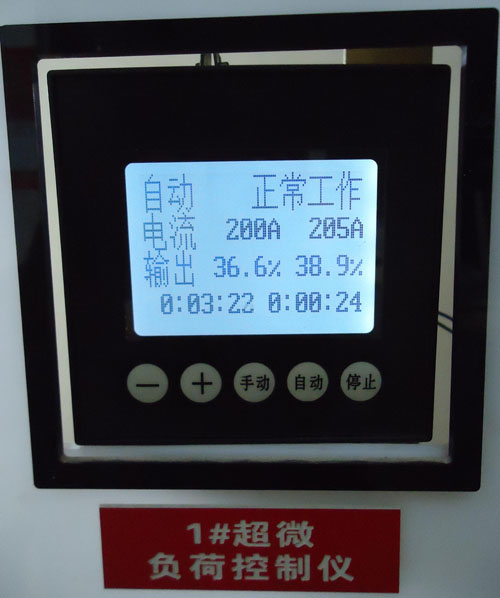

![](/uploadfile/20133282024182527.jpg)

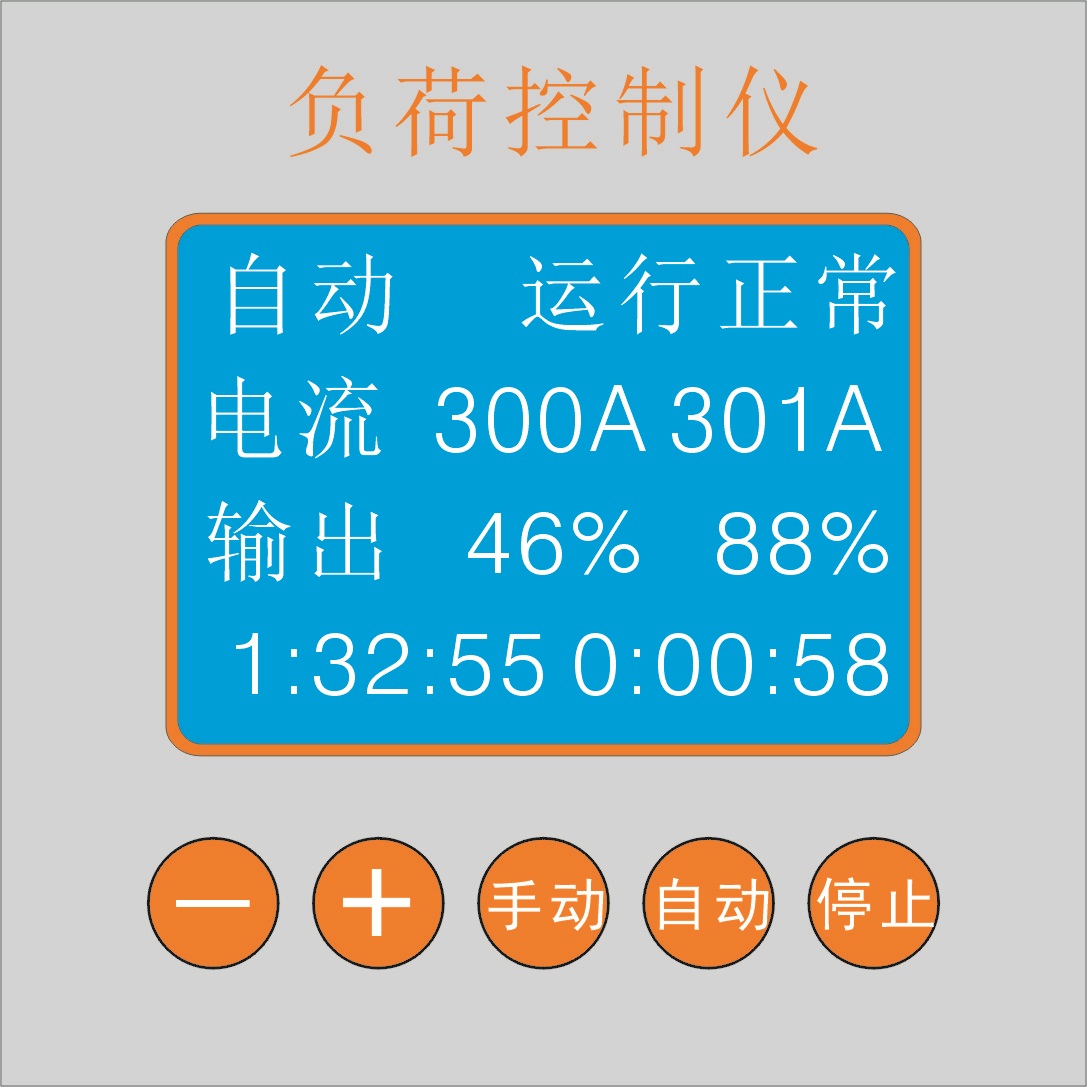

Shenghong fine powder grinding mill adopts 128*64 blue screen white character highlight LCD display interface, micro switch button, 96*96*100 instrument box, easy to install, intuitive display and simple operation. The controller has 2 DC4-20ma outputs, 1 AC0-5A input, and 4DI input 4DO output port. The input and output are all optically isolated and have strong anti-interference ability.
The load controller adopts integrated grading impeller speed regulation, which is suitable for ordinary positive and negative grinding mill, grinding mill, and mill with linear motor feed gate feeders.Integrate multiple auxiliary detection functions.

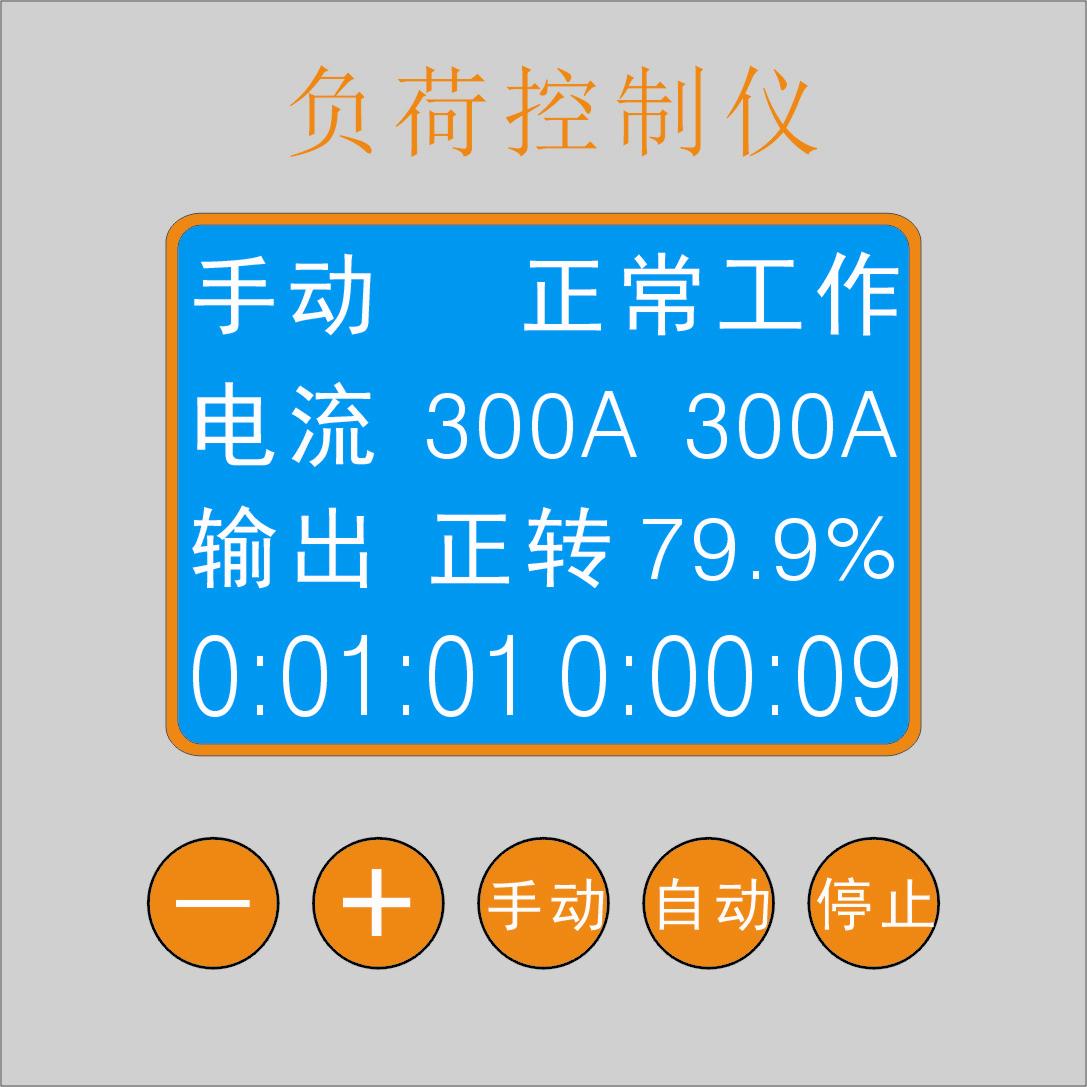

![](/uploadfile/20181211/2018121111504384948.jpg)
Function introduction
control mode
Manual/automatic switching (the control output does not change during the switching process) to ensure continuity of the production process.
Alarm alert function
When the current is at no-load/overload time exceeds the set value, the controller will give an audible and visual alarm, prompting the operator to proceed to the next step according to the operating state of the device, and pressing the stop button to cancel the alarm.
Work status
Motor stop, current too low, no load waiting, initial lock, quick start, slow start, normal operation, overload lock, pause output.
Running timing function
Automatically record the motor and display cumulative running time, dead time, single running time and dead time, and accurate to the second, providing basis for equipment management and production management.

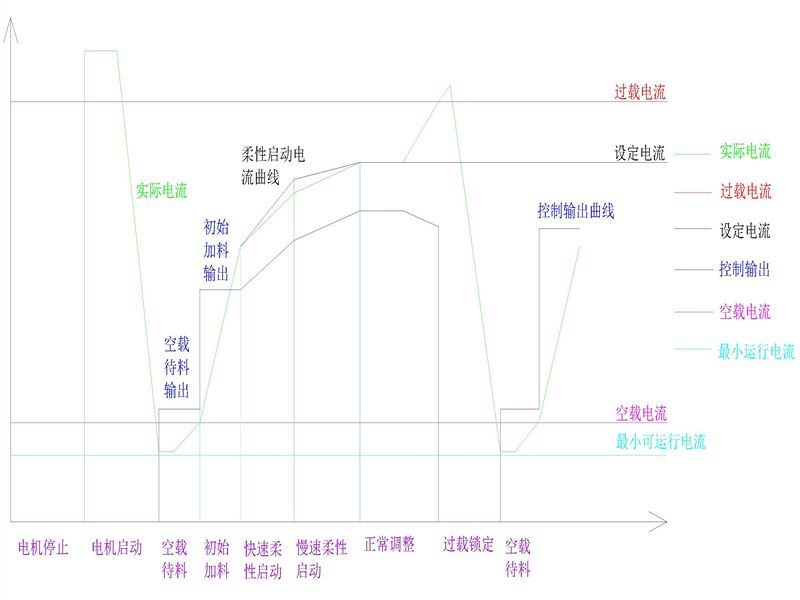

![](/uploadfile/20181211/20181211115093849414.jpg)
选型指导(图)
型号 |
P2B-I-20 |
P2B-I2-20 |
P2B-I-20-8 |
喂料电机控制 |
有 |
有 |
有 |
分级叶轮控制 |
无 |
有 |
无 |
粉碎机风压检测 |
无 |
无 |
有 |
正反转检测 |
有 |
无 |
有 |
运行计时 |
有 |
有 |
有 |
空载计时 |
有 |
有 |
有 |
直线电机驱动 |
无 |
无 |
有 |
变频器报警检测 |
有 |
有 |
有 |
DA |
4-20MA |
2组4-20MA |
4-20MA |
AD |
0-5A |
0-5A |
0-5A |
喂料门开度控制 |
无 |
无 |
有 |
适用范围 |
普通正反转粉碎机 |
带分级叶轮超微粉碎机 |
带直线电机喂料门控制粉碎机(布勒粉碎机) |
